70W & 150W LED Street Lights | 3Watt & 3CCT Adjustable | 0-10V Dimming

70W & 150W LED Street Lights | 3Watt & 3CCT Adjustable | 0-10V Dimming | RL02 Series

Key Features

Watts: 70W | 150W (All 60%-80%-100% Adjustable)
Lumens Per Watt: 150
Voltage: AC 120V-277V, 120-347V, 277V-480V Optional
Color Temperature: 3/4/5000K 3CCT
CRI: 70+
Dimming: 0-10V
Beam Angles (Alt): Type Ⅱ, Type Ⅲ, Type Ⅳ, Type Ⅴ Optional
Optics: Polycarbonate Lens
Lifespan: 50,000 hours
Mounting: Φ 1.57″ & Φ 2.36″ Lamp Posts
Fixture Color: Gary
Frequency: 50-60Hz
Power Factor: > 0.9
THD: < 15%

Durable Construction

Housing: Die-Cast Aluminum
IP Rating: IP65
IK Rating: IK08
Surge Protection:
Operating Temperature: -31°F to +122°F
Certifications: UL | ETL | DLC | CE | FCC
Warranty: 5 years

Measurements

Dimensions:
Weight:

Features/Accessories

Quote for bulk purchases of your business

Superior Performance for Area & Road Applications

RL02 Series LED street lights are the perfect solution for area and road lighting, delivering exceptional optical performance while ensuring budget-friendly operation. With optional light sensors and motion sensors, maintenance becomes a breeze. Ideal for sidewalks, car parks, and streets, these lights enhance safety and promote cost-efficiency.

Robust Design & Long-lasting Technology

Crafted with heavy-duty cast aluminum housing and a removable door, these street lights are built to endure. The high-efficiency LED driver supports wide input voltage options (120-277VAC/120-347VAC/277-480VAC) and offers 0-10V dimming capabilities. For optimal heat sinking and operation efficacy, the LED driver attaches directly to a die-cast aluminum back housing, prolonging the lifespan of the product.

Easy Installation & Customization

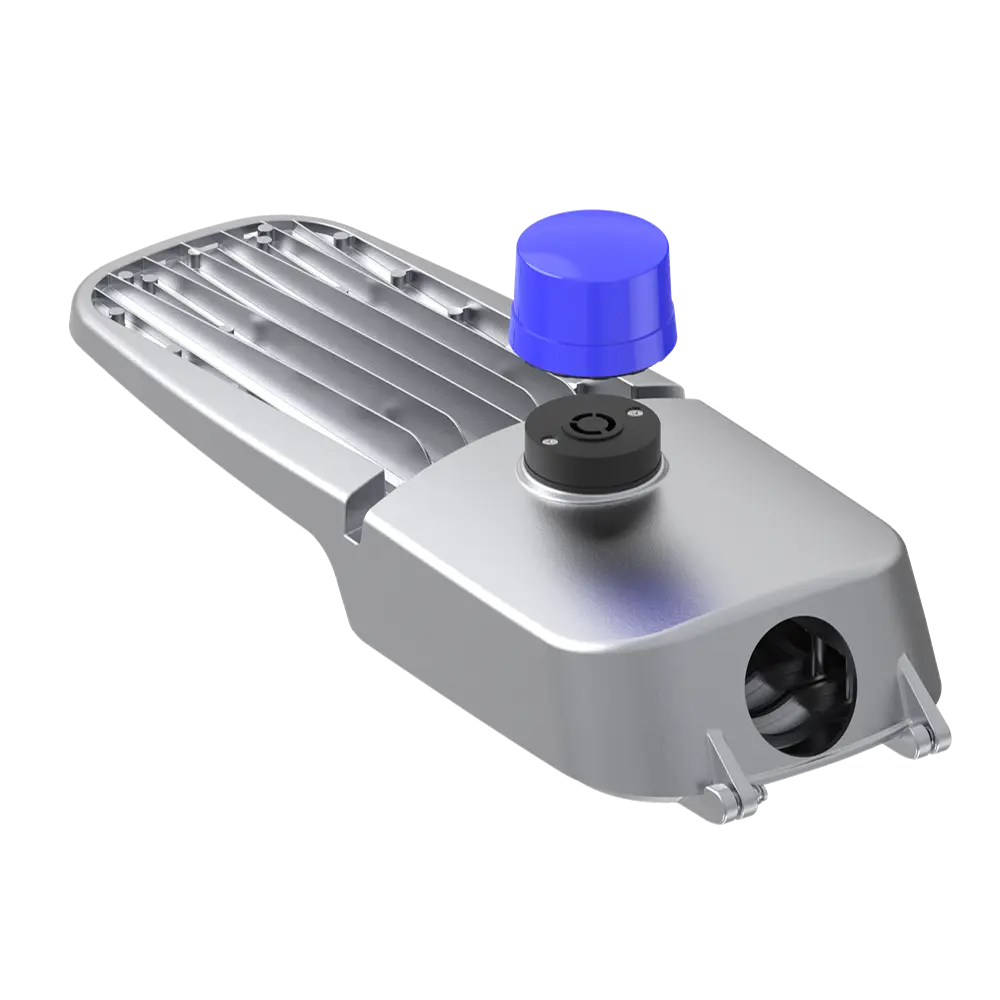

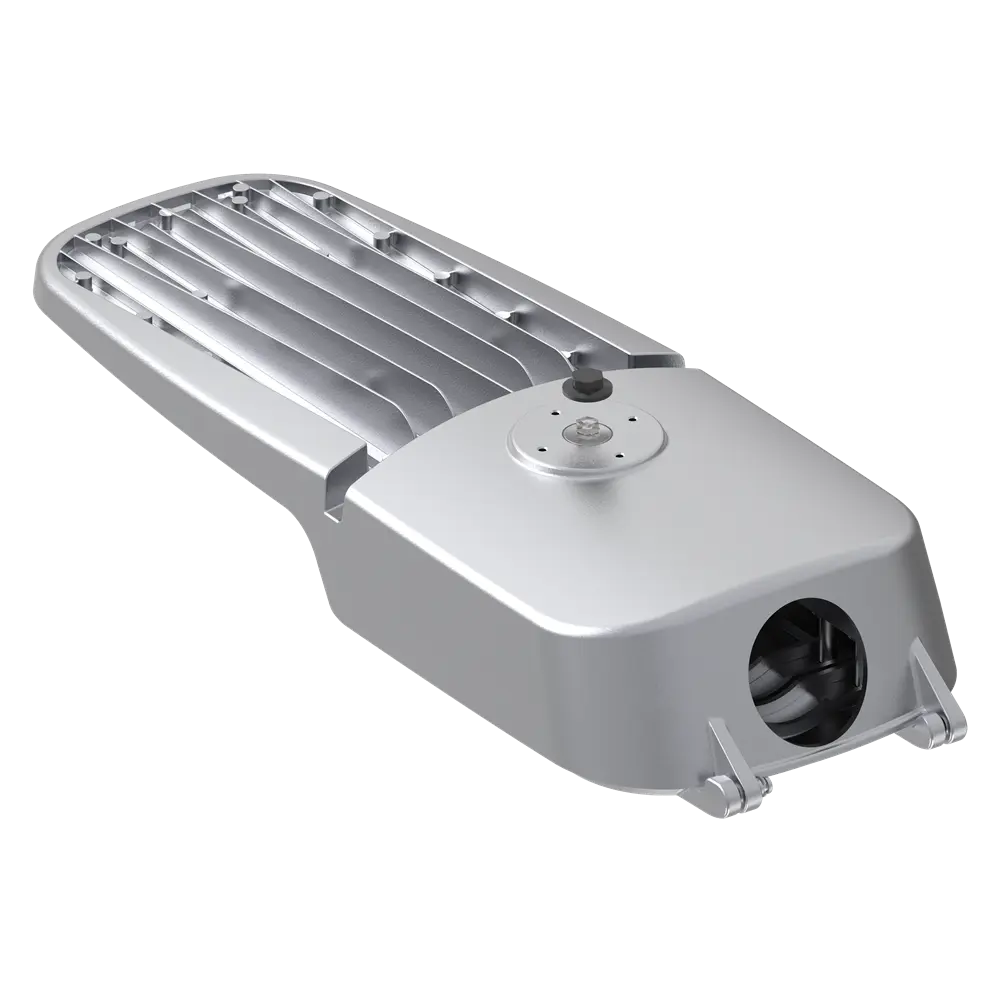

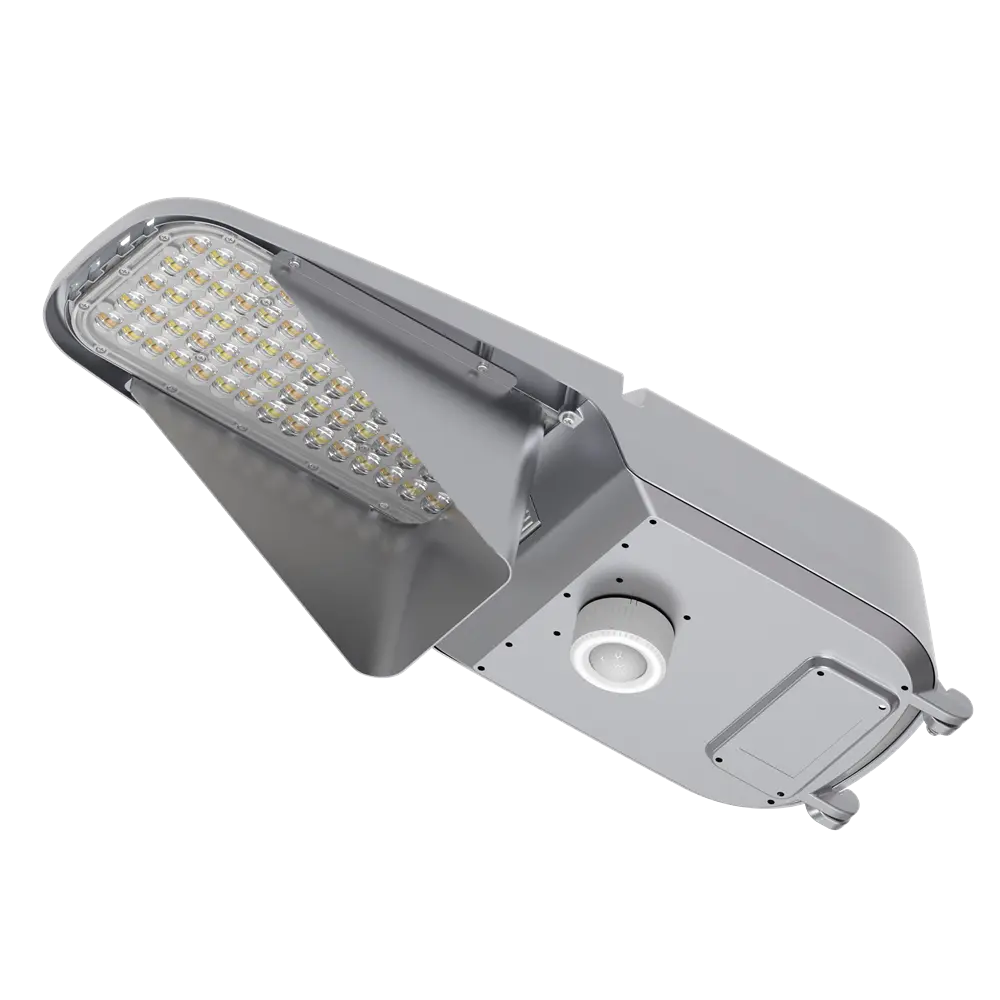

Featuring a cast aluminum design for better cooling and simple replacement, these lights are engineered for ease of installation. Accessories for Φ 1.57 inch and Φ 2.36 inch lamp posts are included, along with optional low/high voltage photo sensors, microwave sensors, and PIR sensors. Multiple leakage holes in the power chamber prevent water accumulation, ensuring durability even in challenging environments.
