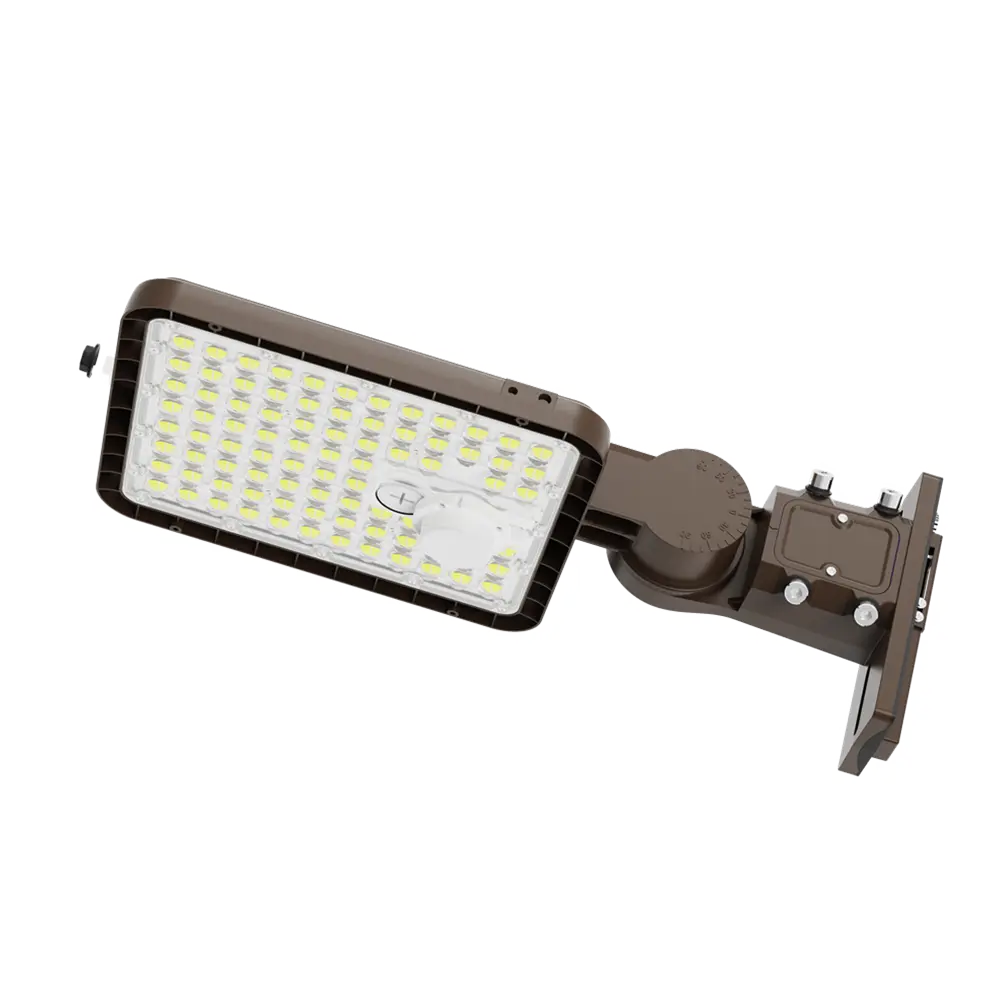

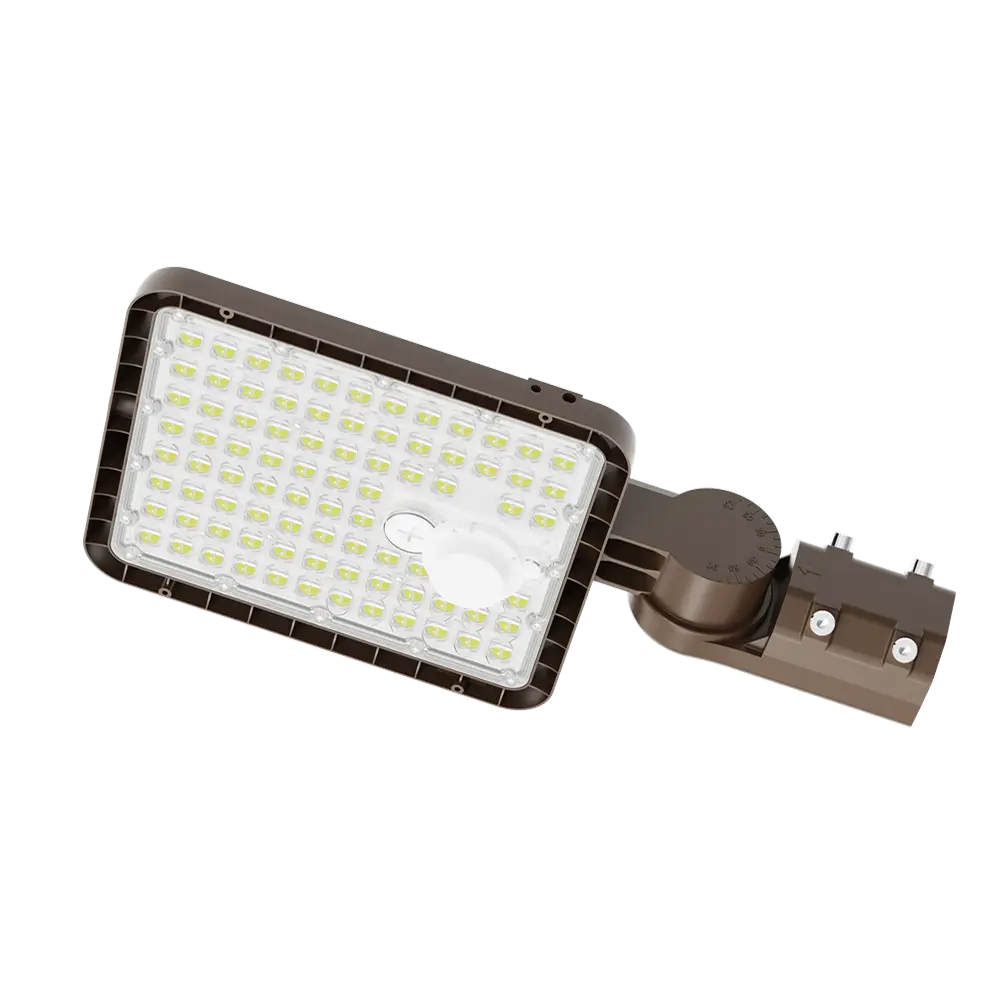

150W & 300W LED Shoebox Area Lights | 3Watt & 3CCT Adjustable | 0-10V Dimming | Built-in Photocell | AR11 Series

SKU: AR11 Categories: ,
Key Features
  • Watts: 150W | 300W (All 60%-80%-100% Adjustable)
  • Lumens Per Watt: 170
  • Voltage: AC120V-277V, 120-347V, 277V-480V Optional

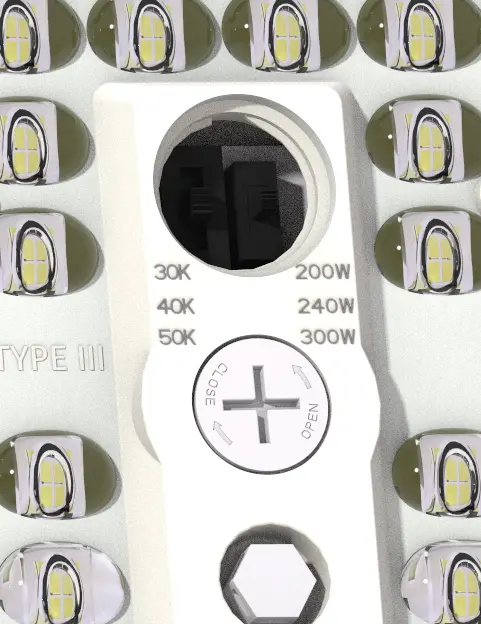

  • Color Temperature: 3/4/5000K 3CCT
  • CRI: 70+
  • Dimming: 0-10V
  • Beam Angles (Alt): Type Ⅱ, Type Ⅲ, Type Ⅳ, Type Ⅴ Optional
  • Optics: Polycarbonate Lens
  • Lifespan: 50,000 hours

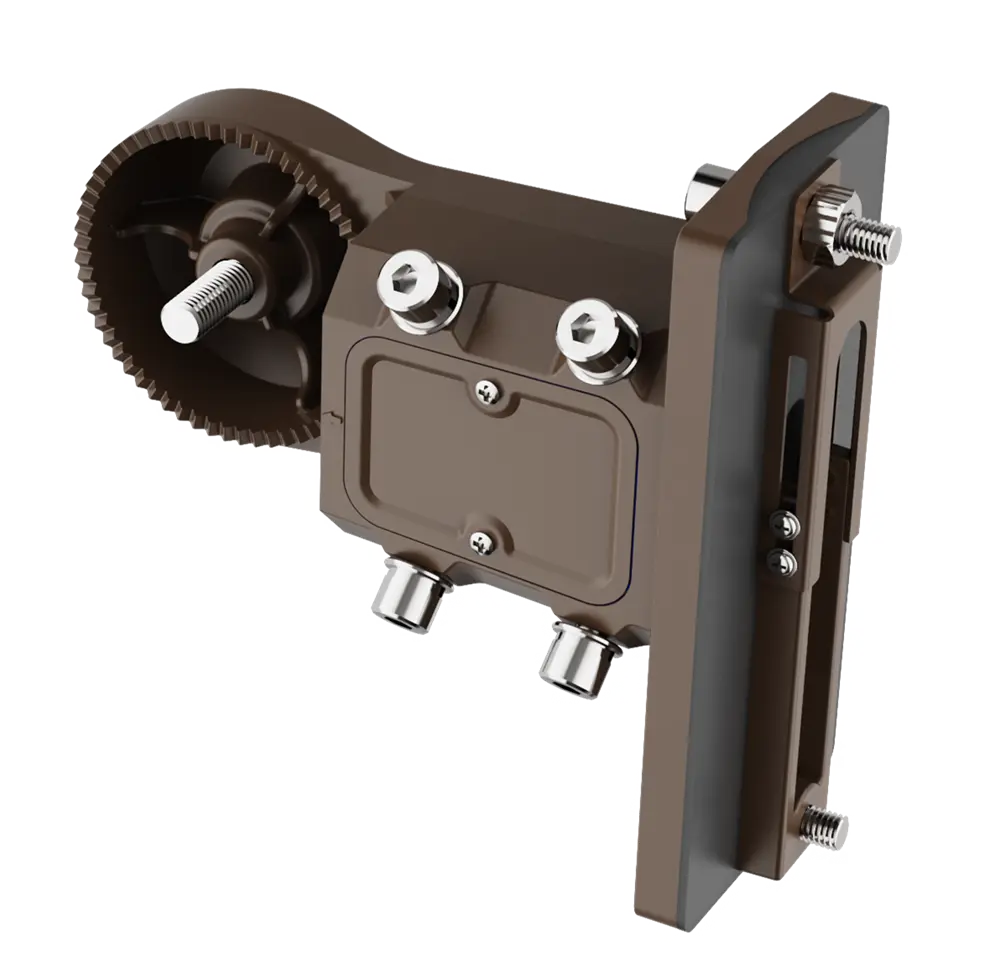

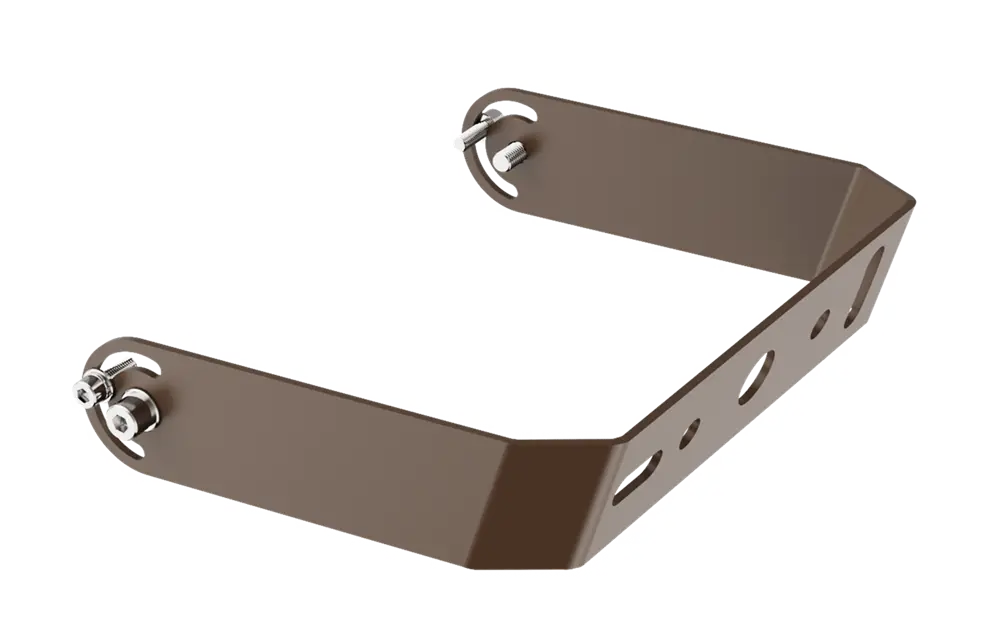

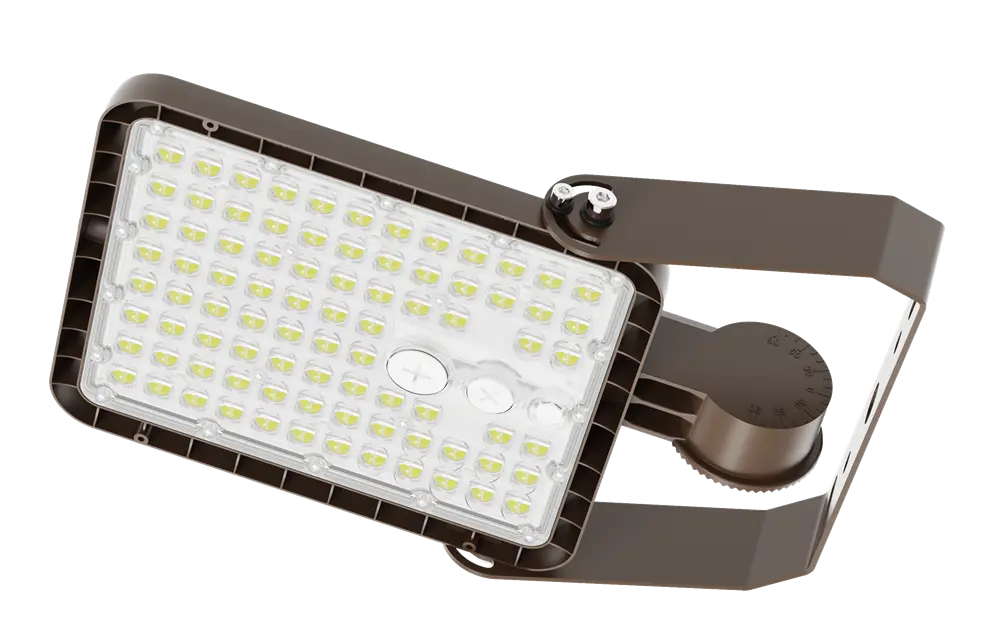

  • Mounting: Wall or Yoke or Arm or Slip Fitter
  • Fixture Color: Bronze
  • Frequency: 50-60Hz
  • Power Factor: > 0.9
  • THD: < 15%
Durable Construction
  • Housing: Die-Cast Aluminum
  • IP Rating: IP65
  • IK Rating: IK08
  • Surge Protection:
  • Operating Temperature: -31°F to +122°F
  • Certifications: UL | ETL | DLC | CE | FCC
  • Warranty: 5 years
Measurements
  • Dimensions:
  • Weight:
Features/Accessories
  • House shield
  • Microwave MotionSensor
  • PIR Sensor
  • Remote Controller
Quote for bulk purchases of your business

Exceptional Lighting for Any Environment

The AR11 Series area lights offers outstanding photometric performance, ensuring uniform illumination even in large spaces. Its low-profile design paired with high efficacy guarantees efficient energy use and long-lasting functionality, making it a reliable choice for diverse applications.

Durable Construction and Easy Installation

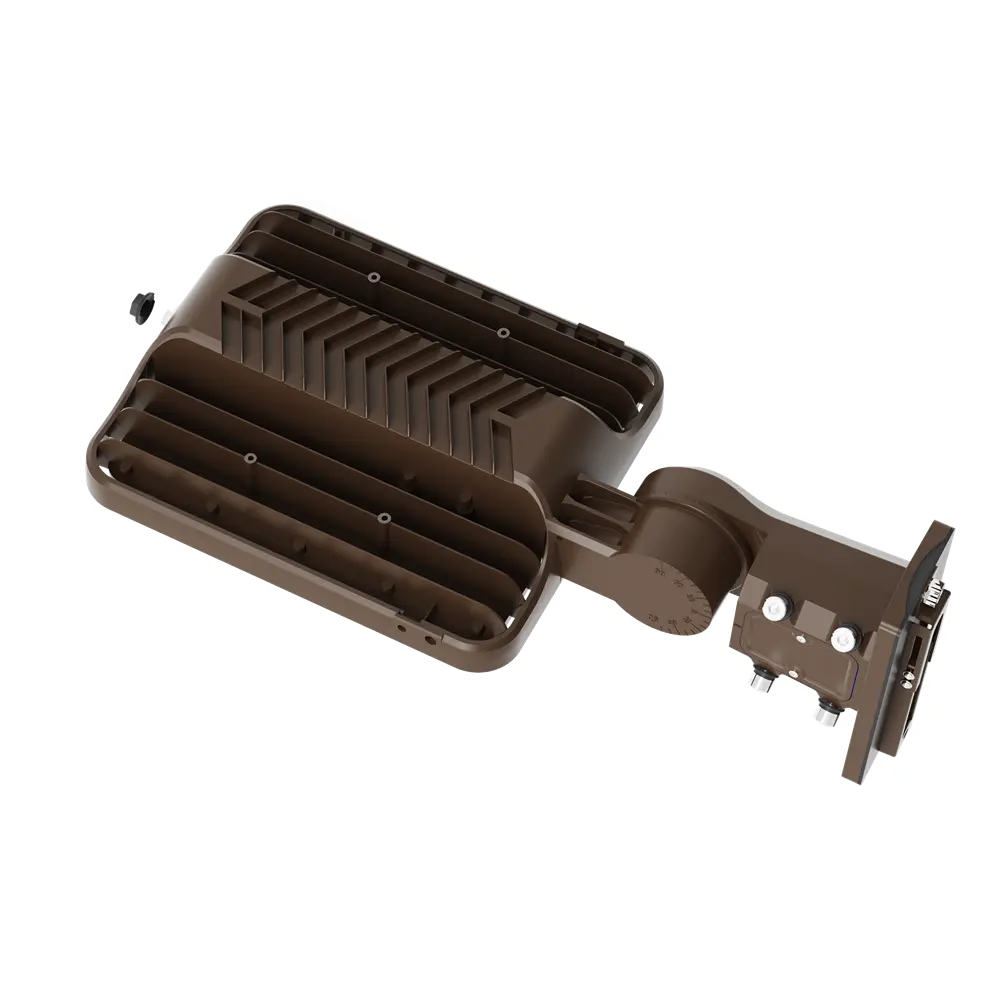

Crafted with a one-piece die-cast aluminum housing coated with UV-resistant powder finish, this light provides excellent corrosion protection. Designed for quick and hassle-free installation, it is ideal for auto dealerships, parking lots, campuses, roadways, grocery stores, and other public areas.

Advanced Features for Maximum Efficiency

The integrated high-efficiency LED driver supports a wide range of input voltages (AC120-277V, AC120-347V, AC277-480V), offering versatile operational capacity. With a die-cast aluminum cooling design and a Tj temperature below 85°C, you can expect both superior durability and optimal performance. This light also features excellent optics design to enhance light utilization and uniformity. Optional motion sensor control further elevates its functionality for cost-saving and adaptive lighting solutions.
